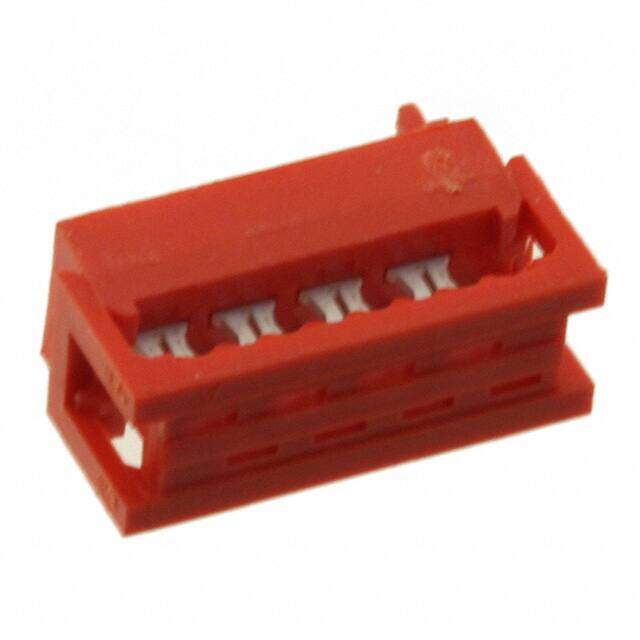

690157000872
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 8POS IDC 28AWG TIN
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.782764
≥1 USD $0.782764
≥10 USD $0.738456
≥100 USD $0.696656
≥500 USD $0.657225
≥1000 USD $0.620024
Inventory: 7347
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 12.19mm
Height 7mm
Technical
Wire Type Ribbon Cable
Insulation Insulated
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Row Spacing 0.059 (1.50mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Gender Male
Number of Contacts 8
Contact Finish Tin
Current Rating 1A
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Male Pin
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Plug
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series WR-MM
Packaging Tube
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 16 Weeks
