690157000672
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

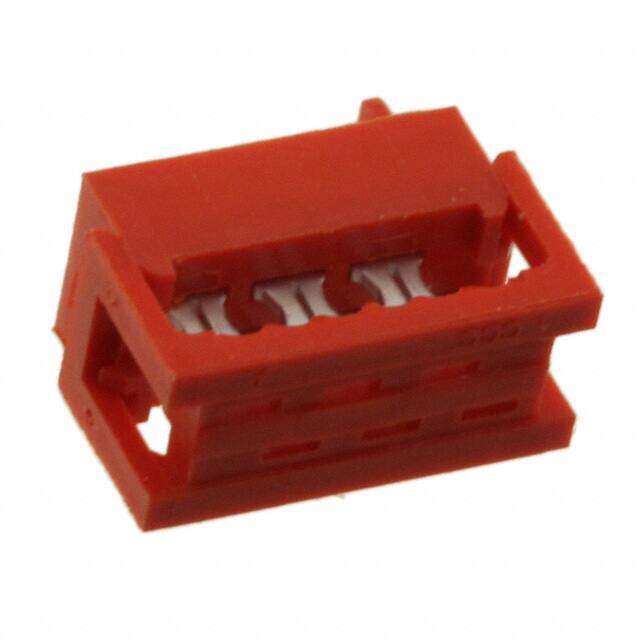

CONN PLUG 6POS IDC 28AWG TIN
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.5456
≥100 USD $0.52536
≥500 USD $0.50512
≥1000 USD $0.45232
Inventory: 1449
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Bronze
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Tube
Series WR-MM
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Red
Number of Rows 2
Gender Male
Voltage - Rated 100V
Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Straight
Current Rating 1A
Contact Finish Tin
Number of Contacts 6
Contact Gender Male
Wire Gauge 28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.059 (1.50mm)
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
