61202623021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

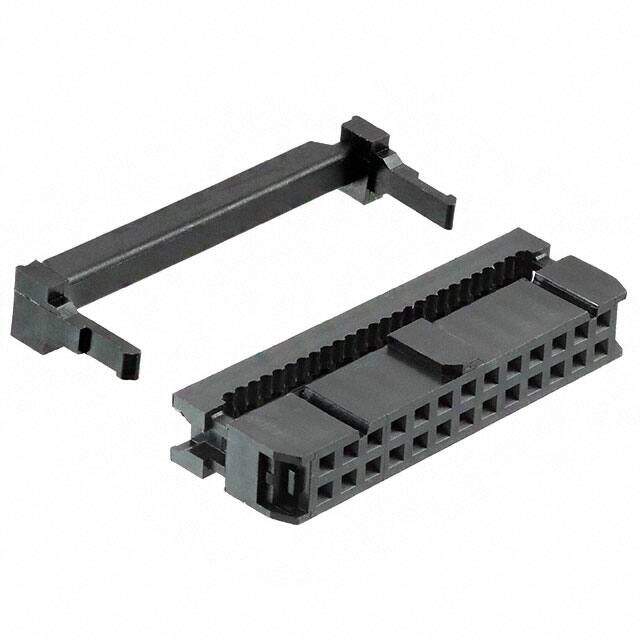

CONN RCPT 26POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.221156
≥1 USD $1.221156
≥10 USD $1.152041
≥100 USD $1.08683
≥500 USD $1.02531
≥1000 USD $0.967273
Inventory: 1089
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Tray
Series WR-BHD
Feature Feed Through, Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 26
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 250V
Voltage - Rated DC 250V
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Current Rating 1A
Contact Finish Gold
Lead Pitch 2.54mm
Number of Contacts 26
Contact Gender Female
Contact Resistance 20mOhm
Wire Gauge 28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Insulation Insulated
Wire Type Ribbon Cable
Dimensions
Height 8.9mm
Length 37.7mm
Width 30.48mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
