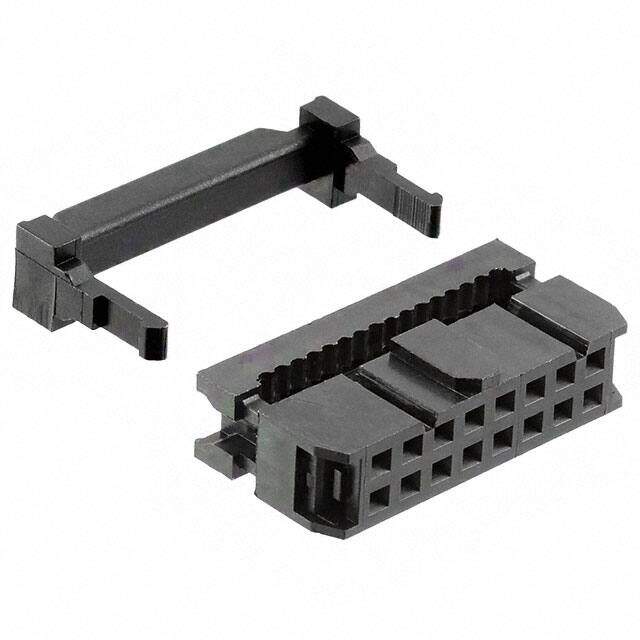

61201623021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 16POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 22
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 17.78mm
Length 6mm
Height 13.6mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Resistance 20mOhm
Contact Gender Female
Number of Contacts 16
Lead Pitch 2.54mm
Contact Finish Gold
Current Rating 1A
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Voltage - Rated DC 250V
Voltage - Rated 250V
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 16
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key, Strain Relief
Series WR-BHD
Packaging Tray
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 20 Weeks
