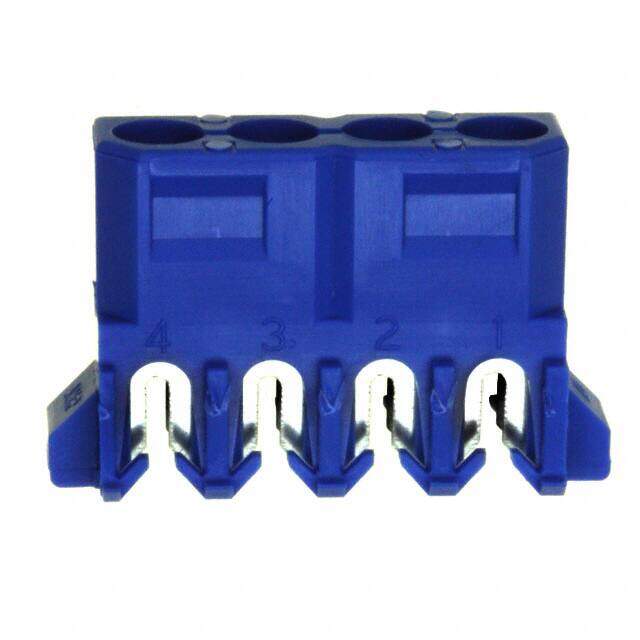

770156-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN IDC PLUG 4POS 94V-2 16AWG
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $1.09032
≥100 USD $1.049664
≥500 USD $1.03928
≥1000 USD $0.937992
≥3000 USD $0.907526
Inventory: 2137
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 6.225mm
Length 20.93mm
Height 20.93mm
Technical
VDE Tested Yes
Contact Retention With
Wire Type Discrete
Number of Signal Positions 0
Insulation Diameter 2.413 mm
Number of Power Positions 4
Circuit Application Power
Contact Current Rating 13A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 16 AWG
Termination Type IDC
Max Voltage Rating (AC) 250V
ELV Compliant
Wire Gauge 16 AWG
Operating Supply Voltage 250V
Empty Shell NO
Contact Gender Male
Lead Pitch 5.08mm
Approval Agency CSA
Contact Finish Tin
Current Rating 13A
Depth 9.91mm
Orientation Right Angle
Total Number of Contacts 4
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 250V
Number of Rows 1
Color Blue
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
JESD-609 Code e3
Series Commercial MATE-N-LOK
Published 1999
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 15 Weeks
