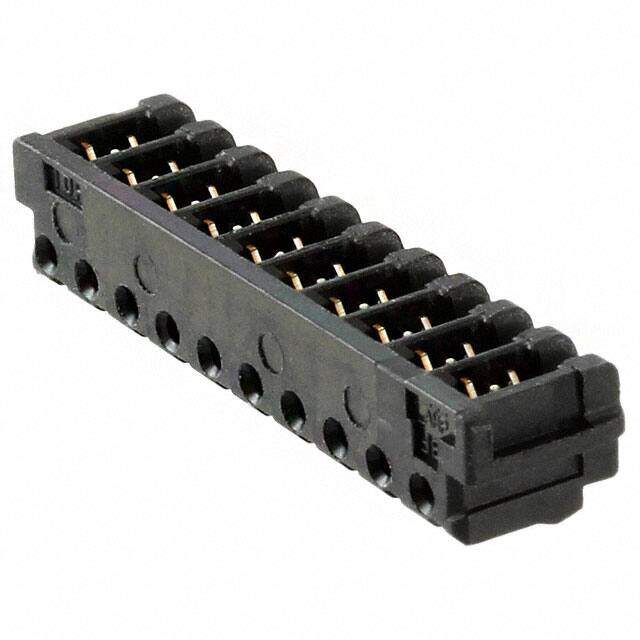

7-173977-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings CT MT REC 10P BLACK
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.602434
≥1 USD $0.602434
≥10 USD $0.568328
≥100 USD $0.536163
≥500 USD $0.505811
≥1000 USD $0.477186
Inventory: 919
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Insulation Diameter-Min 0.034 inch
Contact Design PREASSEM CONN
Wire Type Discrete
Mating Retention Without
Sealable No
Withdrawl Force-Min 9.7856 N
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Polarization Key ENDS
ELV Compliant
Body/Shell Style PLUG
Insulation Resistance 500000000Ohm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -30°C
Body Length or Diameter 0.866 inch
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL, CSA
Current Rating 2A
Total Number of Contacts 10
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Additional Feature AMP
Number of Rows 1
Color Black
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CT
Published 2005
Packaging Bulk
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 18 Weeks
