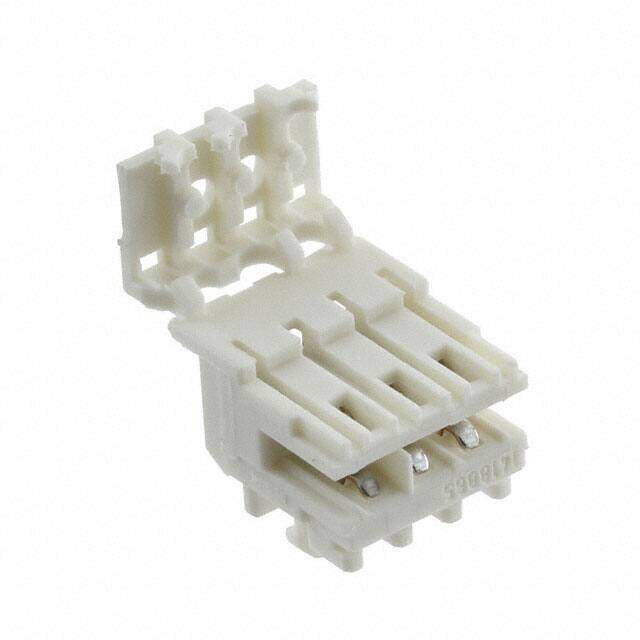

7-1534796-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 3POS IDC 22-24AWG TIN
PDF
/
Inventory: 3006
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Copper, Tin
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
PCB Mounting Orientation Right Angle
Technical
Packaging Bulk
Published 2015
Series DuoPlug
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 1
Gender Receptacle
Contact Type Female Blade Socket
Pitch 0.098 2.50mm
Orientation Right Angle
Current Rating 2A
Contact Finish Tin
Number of Contacts 3
Housing Color Natural
Operating Supply Voltage 250V
Wire Gauge 22-24 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Cable Termination IDC
Contact Current Rating 2A
Circuit Application Signal
Insulation Diameter 1.6 mm
Wire/Cable Diameter 1.27 mm
Wire Type Discrete
Preloaded Yes
Dimensions
Height 7.2898mm
Plating Thickness 6μm
PCB Thickness 1.4986mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
