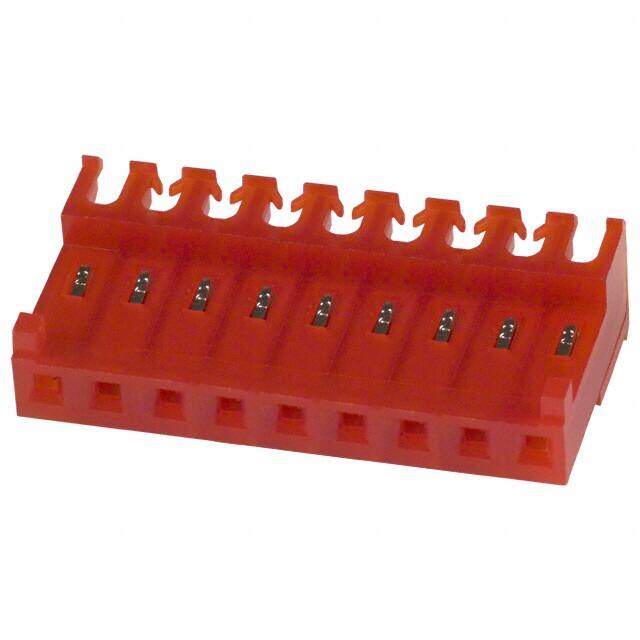

644471-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 9P IDC 22AWG TIN-LEAD
PDF
/
Inventory: 9530
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Length - Termination 0.48 inch
Contact Finish Thickness 80.0μin 2.03μm
Technical
Wire Type Discrete or Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
Termination Type IDC
Body/Shell Style PLUG
Insulation Resistance 5000000Ohm
Wire Gauge 22 AWG
Contact Resistance 3mOhm
Body Depth 0.385 inch
Operating Temperature (Min) -55°C
Contact Gender Female
Body Breadth 0.725 inch
Shrouding No
Reliability COMMERCIAL
Contact Finish Tin-Lead
Reference Standard UL, CSA
Current Rating 7A
Total Number of Contacts 9
Pitch 0.156 3.96mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Additional Feature CLOSED END, TERMINATION
Voltage - Rated 600V
Number of Rows 1
Color Red
Number of Positions 9
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Feed Through, Polarizing Key
JESD-609 Code e4
Series MTA-156
Published 2014
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material PHOSPHOR BRONZE
