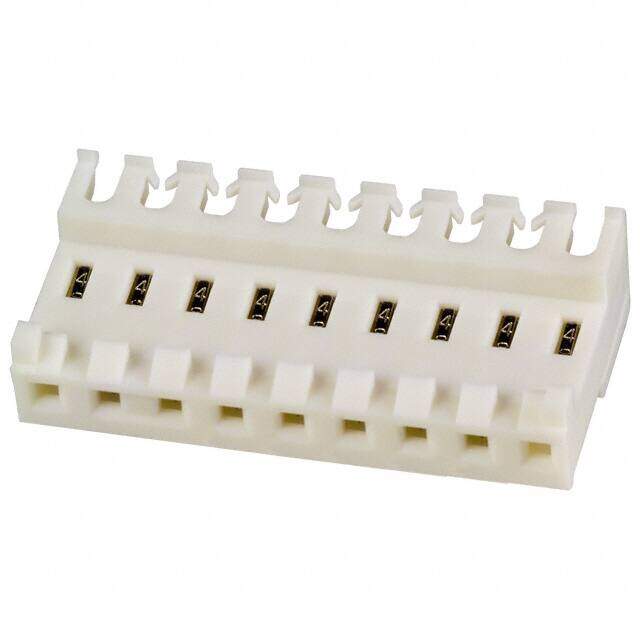

644468-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 9P IDC 24AWG TIN-LEAD
PDF
/
Inventory: 9386
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material COPPER ALLOY
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2009
Series MTA-156
JESD-609 Code e0
Feature Feed Through, Polarizing Key
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 9
Color White
Number of Rows 1
Voltage - Rated 600V
Additional Feature POLARISED
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 9
Current Rating 7A
Reference Standard UL, CSA
Contact Finish Tin-Lead
Voltage - Rated AC 600V
Reliability COMMERCIAL
Shrouding No
Body Breadth 0.725 inch
Contact Gender Female
Operating Temperature (Min) -55°C
Body Depth 0.385 inch
Contact Resistance 3mOhm
Wire Gauge 24 AWG
Insulation Resistance 5000000Ohm
Body/Shell Style PLUG
ELV Non-Compliant
Termination Type IDC
Wire/Cable Type Discrete
Wire/Cable Gauge 24 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Size (Min) 22 AWG
Wire Size (Max) 22 AWG
Dimensions
Contact Finish Thickness 80.0μin 2.03μm
Length - Termination 0.48 inch
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
