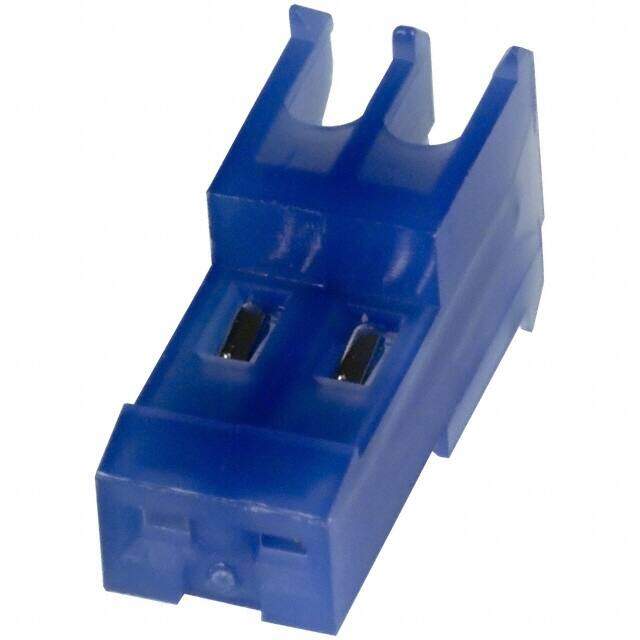

641655-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 2P IDC 26AWG TIN-LEAD
PDF
/
Inventory: 8799
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Dimensions
Contact Finish Thickness 80.0μin 2.03μm
Technical
Wire Type Discrete or Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 26 AWG
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 750VAC V
Termination Type IDC
ELV Non-Compliant
Body/Shell Style PLUG
Insulation Resistance 5000000000Ohm
Wire Gauge 26 AWG
Contact Resistance 5mOhm
Rated Current (Signal) 4A
Operating Temperature (Min) -55°C
Contact Gender Female
Shrouding No
Reliability COMMERCIAL
Voltage - Rated AC 250V
Contact Finish Tin-Lead
Reference Standard UL, CSA
Current Rating 5A
Total Number of Contacts 2
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Additional Feature DAISY CHAIN
Voltage - Rated 250V
Number of Rows 1
Color Blue
Number of Positions 2
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Feed Through
Series MTA-100
Published 2014
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Plating Tin
Contact Material PHOSPHOR BRONZE
