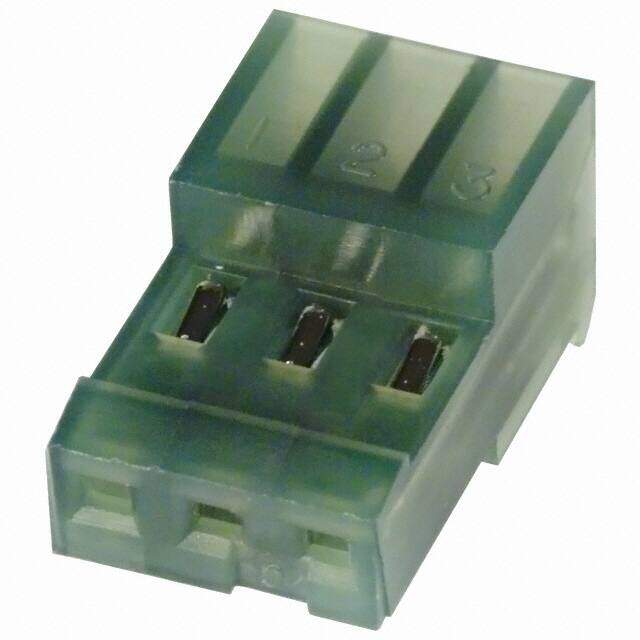

641537-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 3POS 28AWG MTA100
PDF
/
Inventory: 917
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series MTA-100
JESD-609 Code e4
Feature Closed End
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Green
Number of Rows 1
Voltage - Rated 250V
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
Contact Type Female Socket
Pitch 0.100 2.54mm
Total Number of Contacts 3
Orientation Right Angle
Current Rating 5A
Reference Standard UL, CSA
Contact Finish Tin
Voltage - Rated AC 250V
Reliability COMMERCIAL
Shrouding No
Body Breadth 0.52 inch
Contact Gender Female
Body Depth 0.275 inch
Rated Current (Signal) 4A
Contact Resistance 6mOhm
Wire Gauge 28 AWG
Insulation Resistance 5000000000Ohm
Body/Shell Style PLUG
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Termination Type IDC
Dielectric Withstanding Voltage 750VAC V
Wire/Cable Type Discrete
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Size (Max) 22 AWG
Dimensions
Contact Finish Thickness 80.0μin 2.03μm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
