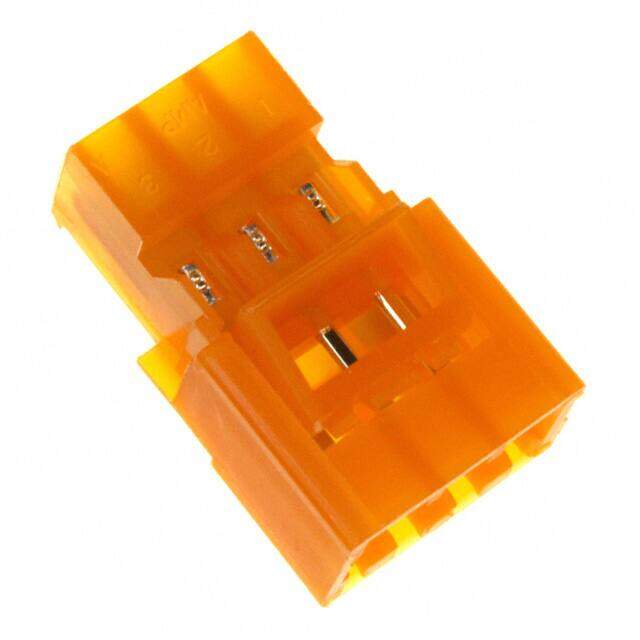

641435-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 3P IDC 18AWG TIN-LEAD
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.8184
≥100 USD $0.674344
≥500 USD $0.530086
≥1000 USD $0.454362
≥3000 USD $0.446292
Inventory: 223
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Lead, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2004
Series MTA-156
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Plug
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Orange
Number of Rows 1
Contact Type Male Pin
Pitch 0.156 3.96mm
Orientation Right Angle
Depth 12.37mm
Contact Finish Tin-Lead
Approval Agency CSA
Shrouding Yes
Number of Contacts 3
Housing Color Orange
Contact Resistance 3mOhm
Wire Gauge 18 AWG
ELV Non-Compliant
Max Voltage Rating (AC) 600V
Wire/Cable Type Discrete
Wire/Cable Gauge 18 AWG
Cable Termination IDC
Contact Current Rating 7A
Circuit Application Power
Number of Power Positions 3
Insulation Diameter 2.413 mm
Wire Type Discrete or Ribbon Cable
Dimensions
Height 12.37mm
Length 15.85mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
