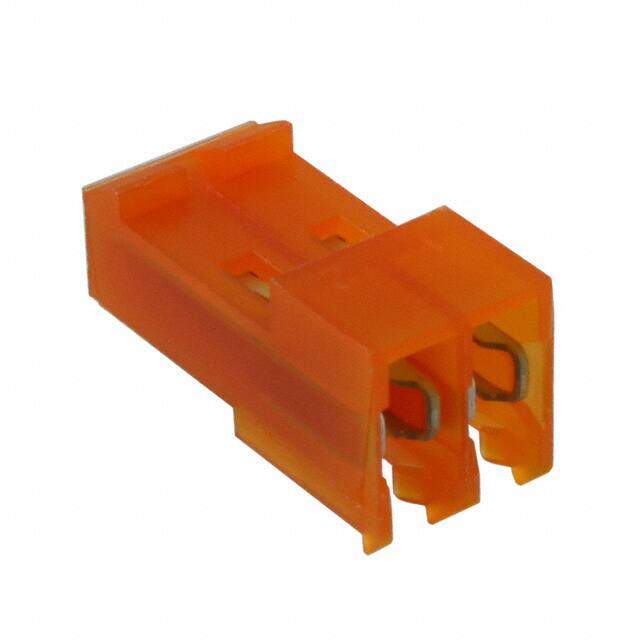

641217-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 02P MTA156 CONN ASSY 18AWG ORA
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.339664
≥1 USD $1.339664
≥10 USD $1.263835
≥100 USD $1.192293
≥500 USD $1.124804
≥1000 USD $1.061138
Inventory: 8966
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 30.0μin 0.76μm
Length 7.9248mm
Height 9.02mm
Technical
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.413 mm
Number of Power Positions 2
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 600V
ELV Compliant
Wire Gauge 18 AWG
Contact Resistance 3mOhm
Operating Supply Voltage 600V
Housing Color Orange
Contact Gender Female
Number of Contacts 2
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Gold
Current Rating 7A
Depth 9.02mm
Orientation Right Angle
Pitch 0.156 3.96mm
Contact Type Female Socket
Fastening Type Locking Ramp
Gender Receptacle
Number of Rows 1
Color Orange
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series MTA-156
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin, Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
