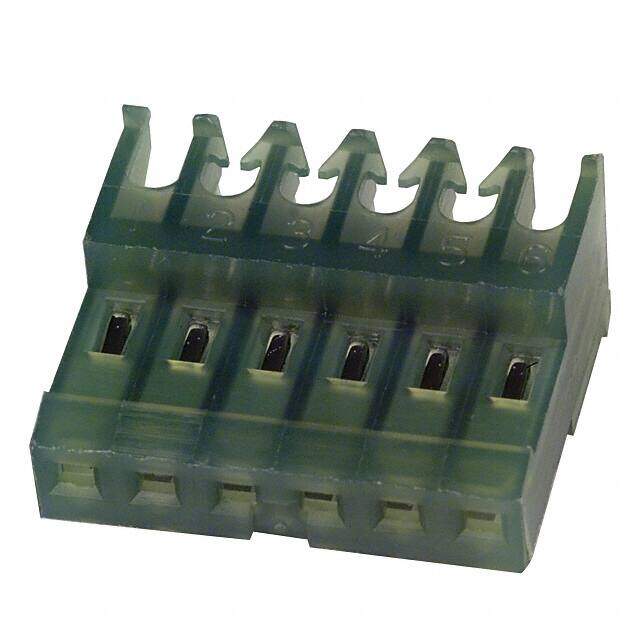

640623-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 6P IDC 28AWG TIN-LEAD
PDF
/
Inventory: 4340
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Plating Thickness 80μin
Contact Finish Thickness 80.0μin 2.03μm
Technical
Wire Size (Max) 22 AWG
Contact Design PREASSEM CONN
Wire Type Discrete or Ribbon Cable
Cable Termination IDC
Durability 25 Cycles
Dielectric Withstanding Voltage 750VAC V
Termination Type IDC
Body/Shell Style PLUG
Insulation Resistance 5000000000Ohm
Wire Gauge 28 AWG
Rated Current (Signal) 5A
Body Depth 0.52 inch
Operating Temperature (Min) -55°C
Body Breadth 0.305 inch
Reliability COMMERCIAL
Contact Finish Tin-Lead
Reference Standard UL, CSA
Total Number of Contacts 6
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Additional Feature FEED THRU, LOOSE PIECE PKG.
Number of Rows 1
Color Green
Number of Positions 6
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Feed Through
JESD-609 Code e3
Series MTA-100
Published 2014
Packaging Bulk
Physical
Insulation Material NYLON
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material COPPER ALLOY
