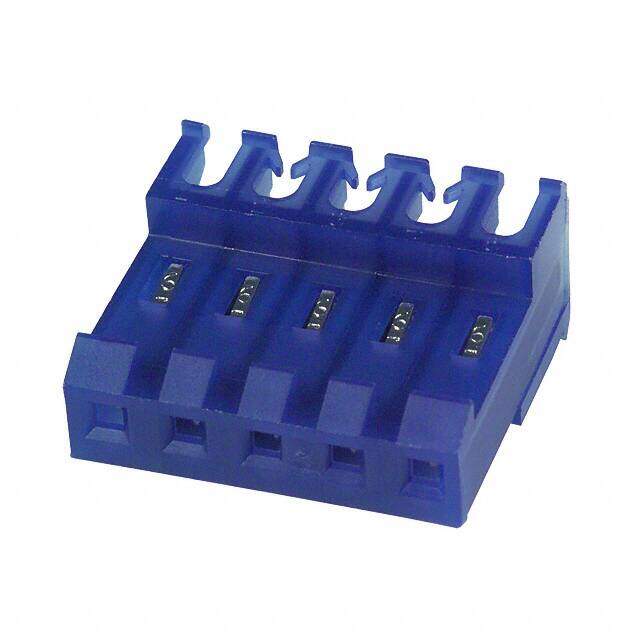

640595-5
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 5P IDC 26AWG TIN-LEAD
PDF
/
Inventory: 4788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material COPPER ALLOY
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2014
Series MTA-156
JESD-609 Code e0
Feature Feed Through
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 5
Color Blue
Number of Rows 1
Additional Feature AMP
Fastening Type Locking Ramp
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 5
Current Rating 7A
Contact Finish Tin-Lead
Voltage - Rated AC 600V
Shrouding No
UL Flammability Code 94V-2
Wire Gauge 26 AWG
ELV Non-Compliant
Termination Type IDC
Wire/Cable Type Discrete
Wire/Cable Gauge 26 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Dimensions
Contact Finish Thickness 80.0μin 2.03μm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
