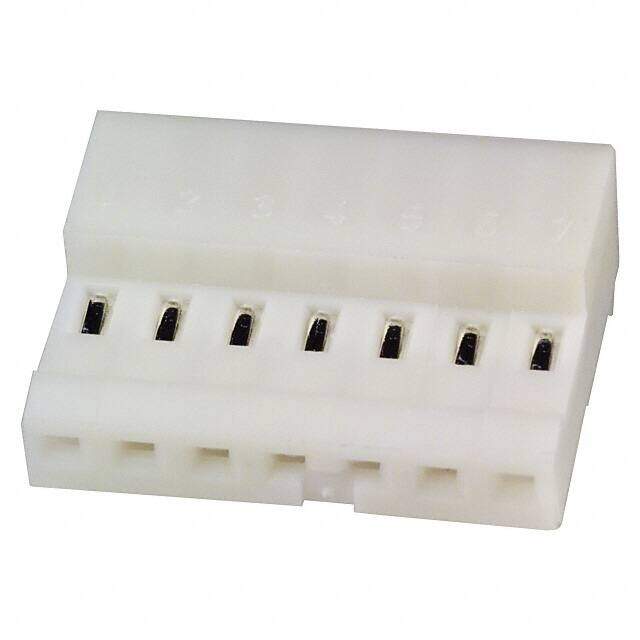

640441-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 7P IDC 24AWG TIN-LEAD
PDF
/
Inventory: 2660
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Length 17.78mm
Height 6.99mm
Technical
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.52 mm
Contact Current Rating 5A
Insertion Force-Max 8.896 N
Cable Termination IDC
Wire/Cable Gauge 24 AWG
Durability 25 Cycles
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Termination Type IDC
Max Voltage Rating (AC) 250V
ELV Non-Compliant
Wire Gauge 24 AWG
Contact Resistance 6mOhm
UL Flammability Code 94V-2
Contact Gender Female
Shrouding No
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Contact Finish Tin-Lead
Current Rating 5A
Depth 6.99mm
Orientation Right Angle
Total Number of Contacts 7
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Number of Rows 1
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 7
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Closed End
JESD-609 Code e0
Series MTA-100
Published 1999
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 15 Weeks
