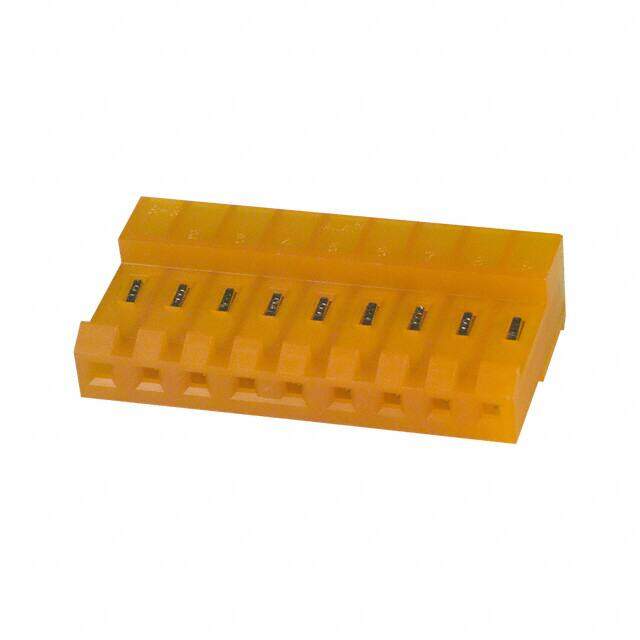

640426-9 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RECEPT 9POS 18AWG MTA156
PDF
/
Inventory: 7951
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Plating Thickness 80μm
Contact Finish Thickness 80.0μin 2.03μm
Length 35.6616mm
Height 9.02mm

Technical

Wire Type Discrete
Insulation Diameter 2.413 mm
Number of Power Positions 9
Contact Current Rating 7A
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 600V
Wire Gauge 18 AWG
Contact Resistance 3mOhm
Housing Color Orange
Contact Gender Female
Number of Contacts 9
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Depth 9.02mm
Orientation Right Angle
Pitch 0.156 3.96mm
Contact Type Female Socket
Fastening Type Locking Ramp
Gender Female
Number of Rows 1
Color Orange
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 9
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Closed End
Series MTA-156
Published 2004
Packaging Bulk

Physical

Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 16 Weeks
