6-353293-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

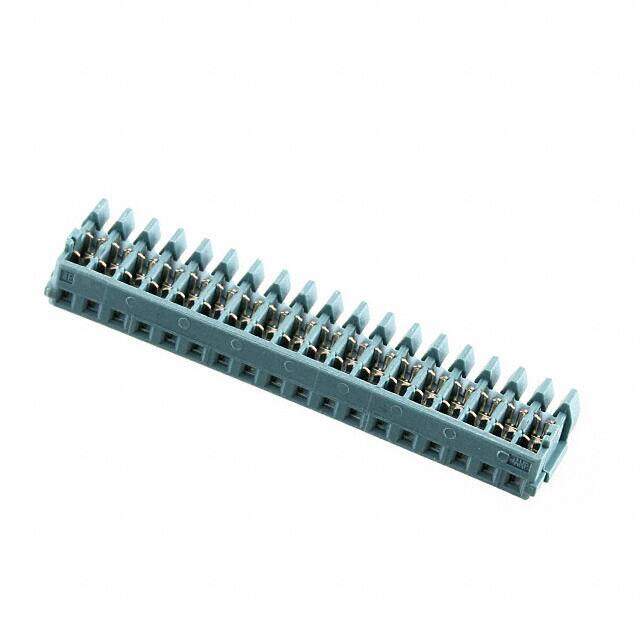

TE Connectivity Cable Mount IDC Connector Socket, 18 Way, 1 Row, 1.5mm Pitch
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.225131
≥1 USD $0.225131
≥10 USD $0.215169
Inventory: 15005
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2004
Series Mini CT
Feature Closed End
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 18
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color Blue
Number of Rows 1
Gender Female
Voltage - Rated 50V
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.059 1.50mm
Total Number of Contacts 18
Orientation Straight
Current Rating 2A
Reference Standard UL
Contact Finish Tin
Reliability COMMERCIAL
UL Flammability Code 94V-0
Body Depth 0.236 inch
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Durability 30 Cycles
Max Voltage Rating (DC) 5.05kV
Cable Termination IDC
Insertion Force-Max 4.0032 N
Sealable No
Mating Retention With
Wire Type Discrete
Contact Design PREASSEM CONN
Insulation Diameter-Min 0.032 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
