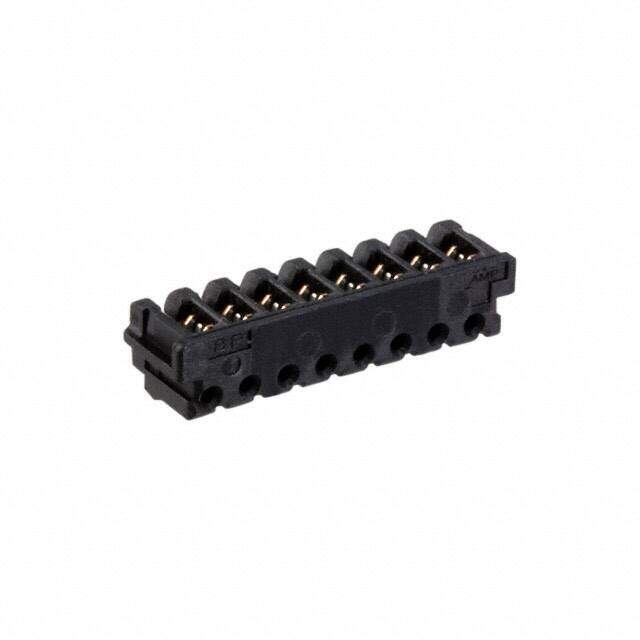

6-173977-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings CT MT REC ASSY 8P BLACK
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.38192
≥100 USD $0.380512
≥500 USD $0.370832
≥1000 USD $0.31812
≥3000 USD $0.287795
Inventory: 15359
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 2005
Series CT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Color Black
Number of Rows 1
Additional Feature AMP
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 8
Current Rating 2A
Reference Standard UL, CSA
Contact Finish Tin
Reliability COMMERCIAL
Body Length or Diameter 0.709 inch
Operating Temperature (Min) -30°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 500000000Ohm
Body/Shell Style PLUG
ELV Compliant
Polarization Key ENDS
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Sealable No
Mating Retention Without
Wire Type Discrete
Contact Design PREASSEM CONN
Insulation Diameter-Min 0.034 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
