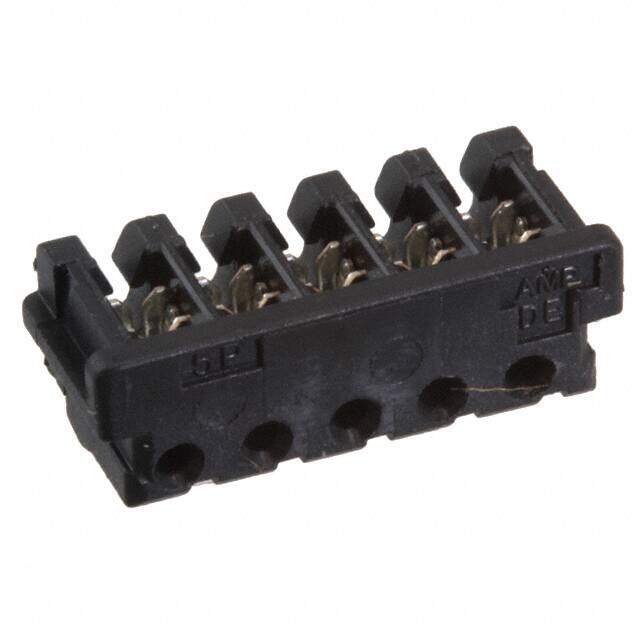

6-173977-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings CT MT REC ASSY 5P BLACK
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.91784
≥100 USD $0.88352
≥500 USD $0.874896
≥1000 USD $0.789448
≥3000 USD $0.763875
Inventory: 3488
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 2005
Series CT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 5
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Additional Feature AMP
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 5
Orientation Straight
Depth 5.1mm
Current Rating 2A
Reference Standard UL, CSA
Contact Finish Tin
Reliability COMMERCIAL
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
Body/Shell Style PLUG
ELV Compliant
Max Voltage Rating (AC) 125V
Polarization Key ENDS
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Insertion Force-Max 48.928 N
Withdrawl Force-Min 6.672 N
Sealable No
Mating Retention Without
Wire Type Discrete
Contact Design PREASSEM CONN
Insulation Diameter-Min 0.034 inch
Dimensions
Length 12mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
