5-641201-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 26P MTA100 CONN ASSY GRN LF
PDF
/
Buying Options
Total Price: USD $25.7
Unit Price: USD $25.702643
≥1 USD $25.702643
≥200 USD $10.256375
≥500 USD $9.913708
≥1000 USD $9.744344
Inventory: 1095
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Plating Tin, Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-100
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 26
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Green
Number of Rows 1
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.100 2.54mm
Current Rating 5A
Contact Finish Gold
Voltage - Rated AC 250V
Approval Agency CSA
Shrouding No
Number of Contacts 26
Contact Gender Female
Housing Color Green, White
Operating Supply Voltage 250V
Wire Gauge 28 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment Without
Dimensions
Height 7.75mm
Length 66.04mm
Width 7.747mm
Contact Finish Thickness 15.0μin 0.38μm
Plating Thickness 1.77μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable

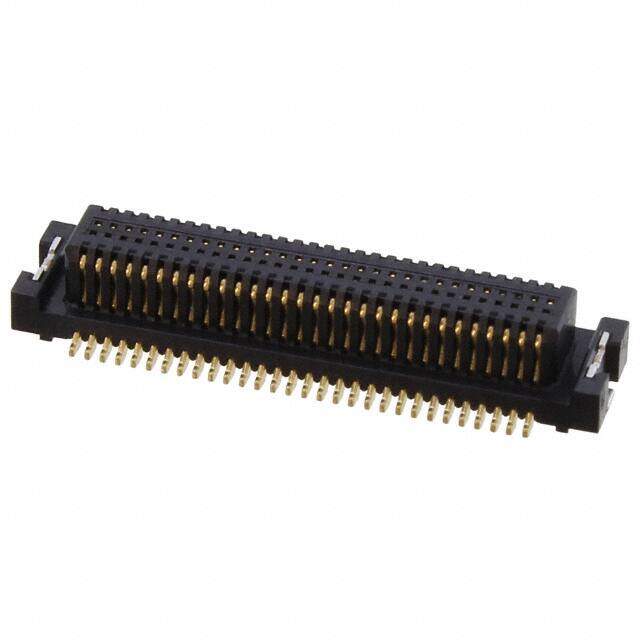

Alternative Model
