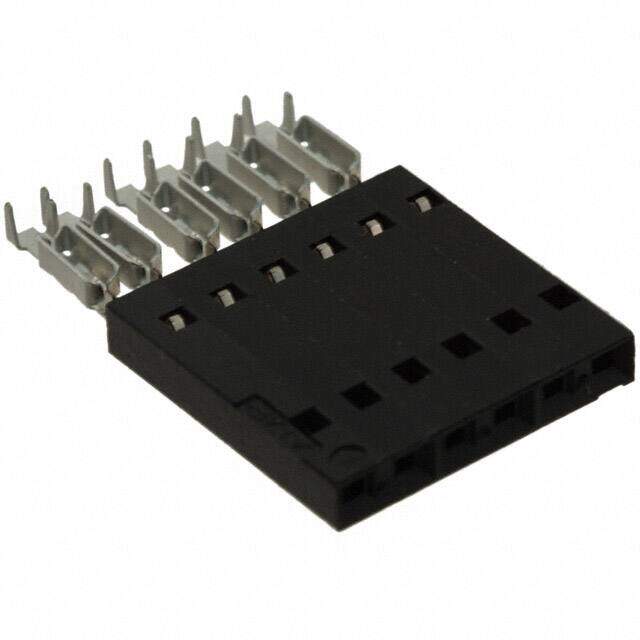

5-104439-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 6POS IDC 22-26AWG GOLD
PDF
/
Buying Options
Total Price: USD $2.12
Unit Price: USD $2.1208
≥1 USD $2.1208
≥10 USD $1.89288
≥100 USD $1.8832
≥500 USD $1.864007
≥1000 USD $1.700354
Inventory: 623
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 60.706mm
Height 2.4892mm
Technical
Wire Type Ribbon Cable
Insulation Diameter 1.37 mm
Mating Retention Without
Contact Current Rating 3A
Cable Termination IDC
Wire/Cable Gauge 22 AWG
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 26 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 600V
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Wire Gauge 22-26 AWG
Contact Resistance 15mOhm
Operating Supply Voltage 267V
Housing Color Black
Contact Gender Female
Number of Contacts 6
Approval Agency CSA
Contact Finish Gold
Current Rating 3A
Depth 15.24mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series AMPMODU MTE
Published 2008
Packaging Tube
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
