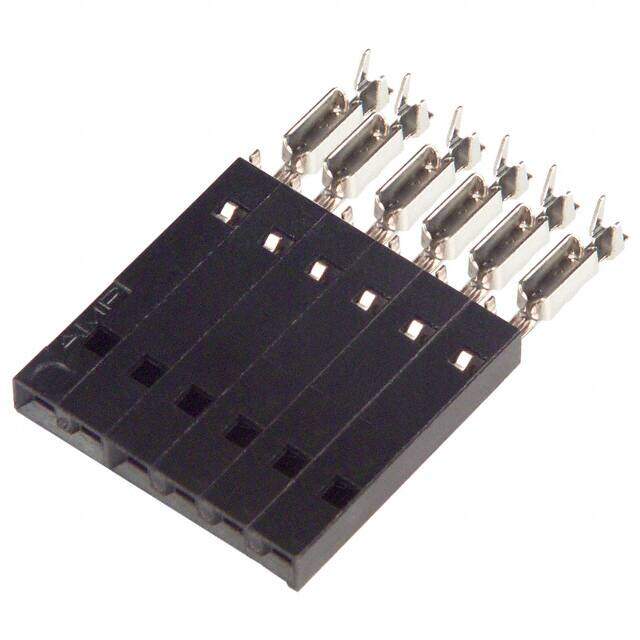

5-103976-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 6POS IDC 22-26AWG GOLD
PDF
/
Buying Options
Total Price: USD $5.62
Unit Price: USD $5.620525
≥1 USD $5.620525
≥200 USD $2.242433
≥500 USD $2.167598
≥756 USD $2.130837
Inventory: 2036
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Bronze
Contact Plating Tin, Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Tube
Published 2011
Series AMPMODU MTE
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Receptacle
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Voltage - Rated 600V
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Depth 15.24mm
Current Rating 3A
Contact Finish Gold
Approval Agency CSA
Number of Contacts 6
Contact Gender Female
Housing Color Black
Operating Supply Voltage 267V
Contact Resistance 15mOhm
Wire Gauge 22-26 AWG
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Compliant
Wire/Cable Type Ribbon
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Contact Current Rating 3A
Mating Retention Without
Insulation Diameter 1.37 mm
Wire Type Ribbon Cable
Dimensions
Height 2.49mm
Length 60.71mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
