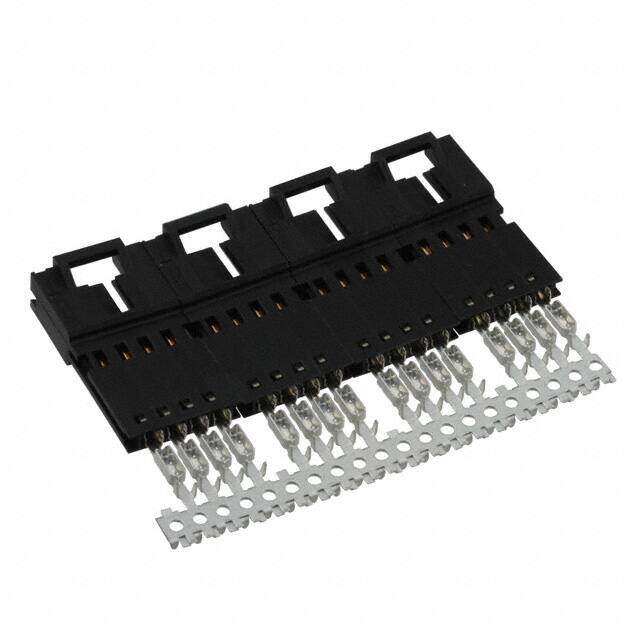

5-103948-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 4POS IDC 26-30AWG GOLD
PDF
/
Buying Options
Total Price: USD $3.05
Unit Price: USD $3.0492
≥1 USD $3.0492
≥10 USD $2.717
≥100 USD $2.703404
≥500 USD $2.675702
≥1000 USD $2.412265
≥3000 USD $2.398396
Inventory: 1758
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Bronze
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Tube
Published 2008
Series AMPMODU MTE
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Plug
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Gender Male
Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Straight
Depth 24.13mm
Current Rating 3A
Contact Finish Gold
Approval Agency CSA
Number of Contacts 4
Contact Gender Male
Housing Color Black
Operating Supply Voltage 267V
Contact Resistance 15mOhm
Wire Gauge 26-30 AWG
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Compliant
Wire/Cable Type Ribbon
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Contact Current Rating 3A
Mating Retention With
Wire Type Ribbon Cable
Dimensions
Height 6.604mm
Length 12.57mm
Contact Finish Thickness 15.0μin 0.38μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
