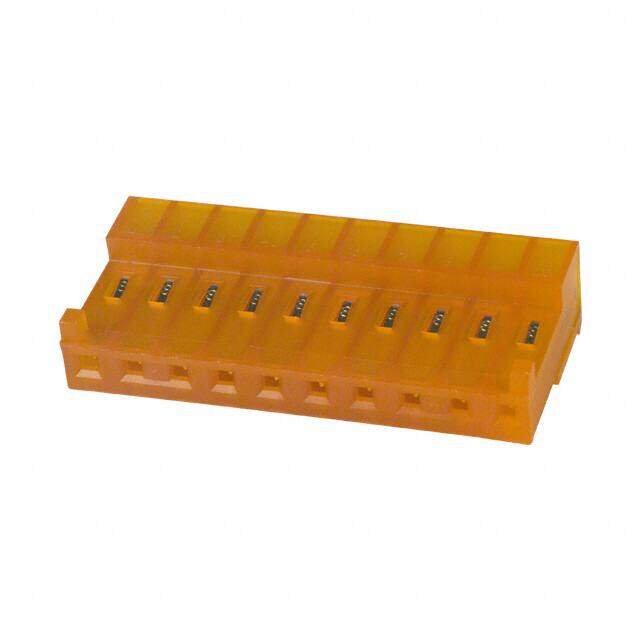

4-644461-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 10POS 18AWG MTA156
PDF
/
Inventory: 4931
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-156
Feature Closed End, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Orange
Number of Rows 1
Voltage - Rated 600V
Contact Type Female Socket
Pitch 0.156 3.96mm
Orientation Right Angle
Depth 9.02mm
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Shrouding No
Lead Pitch 3.96mm
Number of Contacts 10
Contact Gender Female
Housing Color Orange, White
Operating Supply Voltage 600V
Contact Resistance 3mOhm
Wire Gauge 18 AWG
ELV Compliant
Max Voltage Rating (AC) 600V
Wire/Cable Type Discrete
Wire/Cable Gauge 18 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Power
Mating Retention Without
Insulation Diameter 2.41 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment With
Dimensions
Height 9.02mm
Length 39.62mm
Width 9.017mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
