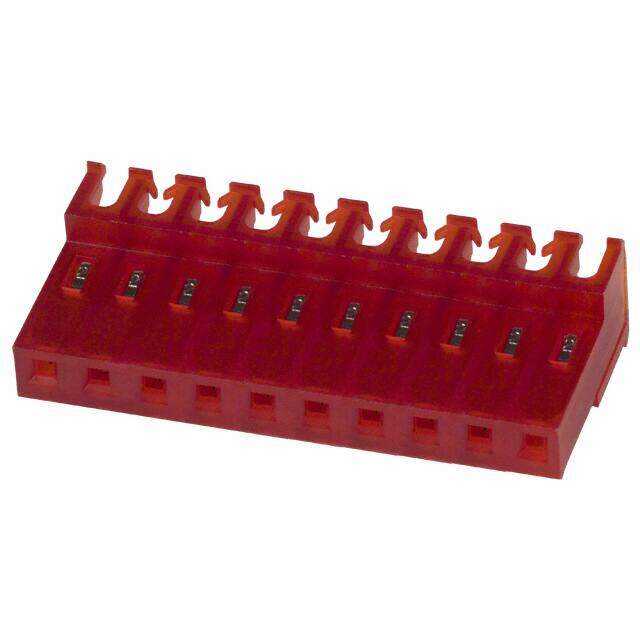

4-640606-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 10POS 22AWG MTA156
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.128917
≥1 USD $1.128917
≥10 USD $1.065014
≥100 USD $1.004727
≥500 USD $0.947857
≥1000 USD $0.894205
Inventory: 5406
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material COPPER ALLOY
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-156
JESD-609 Code e3
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 10
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Lead Pitch 3.96mm
Contact Gender Female
UL Flammability Code 94V-2
Operating Supply Voltage 600V
Wire Gauge 22 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Power
Number of Power Positions 10
Insulation Diameter 2.413 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Dimensions
Height 9.78mm
Length 39.62mm
Width 18.4mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
