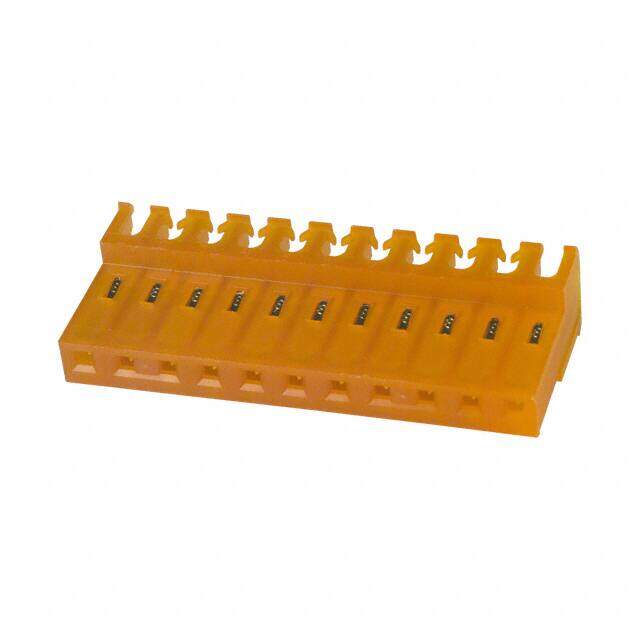

4-640604-1 image
Favorite
4-640604-1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RECEPT 11POS 18AWG MTA156
PDF
/
Inventory: 3715
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Plating Tin
Wire/Cable Type Discrete
Wire/Cable Gauge 18 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Number of Power Positions 11
Insulation Diameter 2.413 mm
Number of Signal Positions 0
Wire Type Discrete or Ribbon Cable
Contact Retention With
Max Voltage Rating (AC) 600V
ELV Compliant
Wire Gauge 18 AWG
Contact Resistance 3mOhm
Operating Supply Voltage 600V
Housing Color Orange
Contact Gender Female
Number of Contacts 11
Lead Pitch 3.96mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Depth 9.78mm
Orientation Right Angle
Pitch 0.156 3.96mm
Contact Type Female Socket
Number of Rows 1
Color Orange
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 11
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series MTA-156
Published 2008
Packaging Bulk

Dimensions

Height 9.78mm
Length 43.59mm
Width 18.4mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable

Physical

Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 15 Weeks
