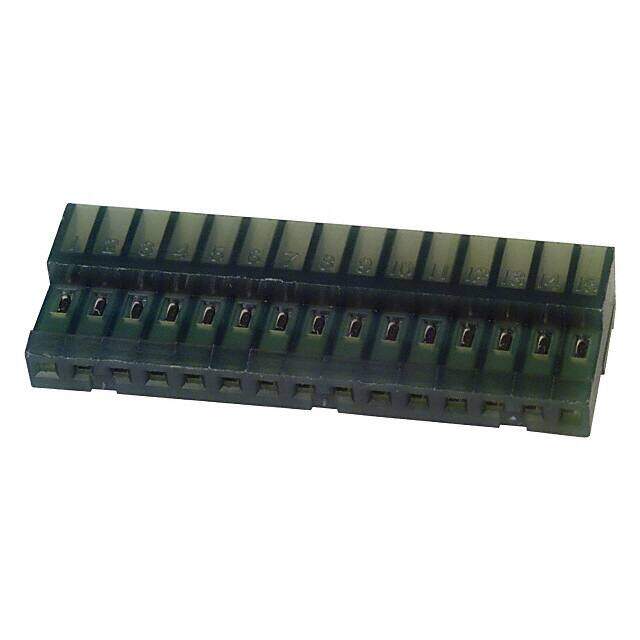

4-640443-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 15POS 28AWG MTA100
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.12816
≥100 USD $0.855272
≥500 USD $0.766066
≥1000 USD $0.692604
≥3000 USD $0.649387
Inventory: 1053
Minimum: 1
-
+
Technical Details
Technical
UL Flammability Code 94V-2
Housing Color Green, White
Operating Supply Voltage 250V
Rated Current (Signal) 5A
Contact Resistance 6mOhm
Wire Gauge 28 AWG
ELV Compliant
Max Voltage Rating (AC) 250V
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
Wire/Cable Type Discrete
Durability 25 Cycles
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Insertion Force-Max 8.896 N
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Contact Gender Female
Body Breadth 0.275 inch
Lead Pitch 2.54mm
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Contact Finish Tin
Current Rating 5A
Depth 6.99mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Color Green
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 15
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End
JESD-609 Code e3
Series MTA-100
Published 2003
Packaging Bulk
Mating Alignment Without
Contact Retention With
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material COPPER ALLOY
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 18 Weeks
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 6.985mm
Length 38.1mm
Height 6.99mm
