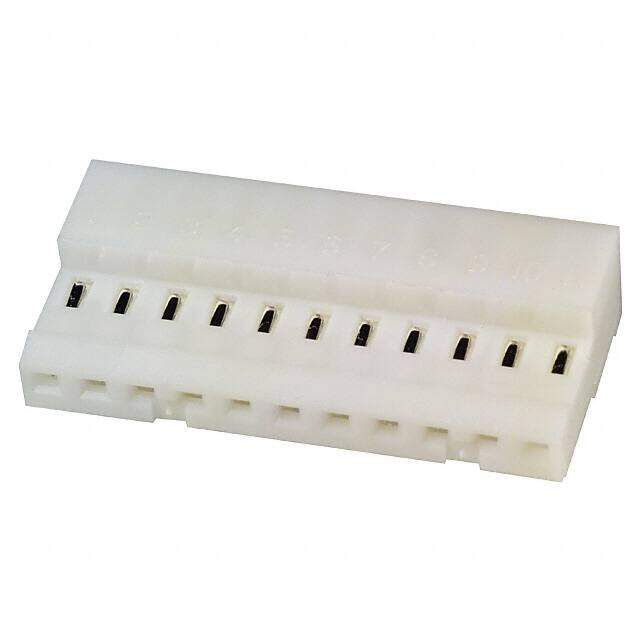

4-640441-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 11POS 24AWG MTA100
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
≥10 USD $0.92664
≥100 USD $0.89936
≥500 USD $0.890208
≥1000 USD $0.82632
≥3000 USD $0.812592
Inventory: 6724
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 6.985mm
Length 27.94mm
Height 6.99mm
Technical
Mating Alignment Without
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.52 mm
Circuit Application Signal
Contact Current Rating 5A
Sealable No
Insertion Force-Max 8.896 N
Cable Termination IDC
Wire/Cable Gauge 24 AWG
Durability 25 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Max Voltage Rating (AC) 250V
ELV Compliant
Wire Gauge 24 AWG
Contact Resistance 6mOhm
Operating Supply Voltage 250V
UL Flammability Code 94V-2
Contact Gender Female
Body Breadth 0.275 inch
Lead Pitch 2.54mm
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Contact Finish Tin
Current Rating 5A
Depth 6.99mm
Orientation Right Angle
Total Number of Contacts 11
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 11
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End
Series MTA-100
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 18 Weeks
