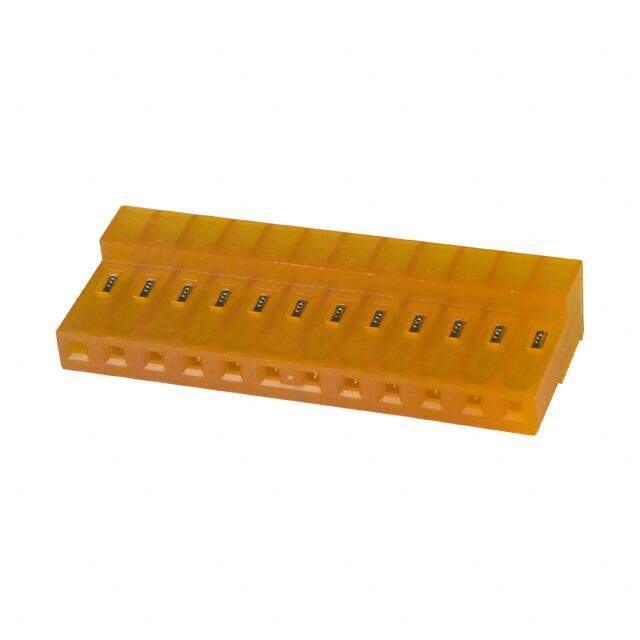

4-640431-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 12POS 18AWG MTA156
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.84128
≥100 USD $0.816288
≥500 USD $0.808016
≥1000 USD $0.750024
≥3000 USD $0.737581
Inventory: 482
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series MTA-156
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 12
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Orange
Number of Rows 1
Gender Receptacle
Contact Type Female Socket
Pitch 0.156 3.96mm
Orientation Right Angle
Depth 9.02mm
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Shrouding No
Lead Pitch 3.96mm
Number of Contacts 12
Contact Gender Female
Housing Color Orange, White
Operating Supply Voltage 600V
Contact Resistance 3mOhm
Wire Gauge 18 AWG
ELV Compliant
Max Voltage Rating (AC) 600V
Plating Tin
Wire/Cable Type Discrete
Wire/Cable Gauge 18 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Power
Number of Power Positions 12
Insulation Diameter 2.413 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Dimensions
Height 9.02mm
Length 47.5488mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
