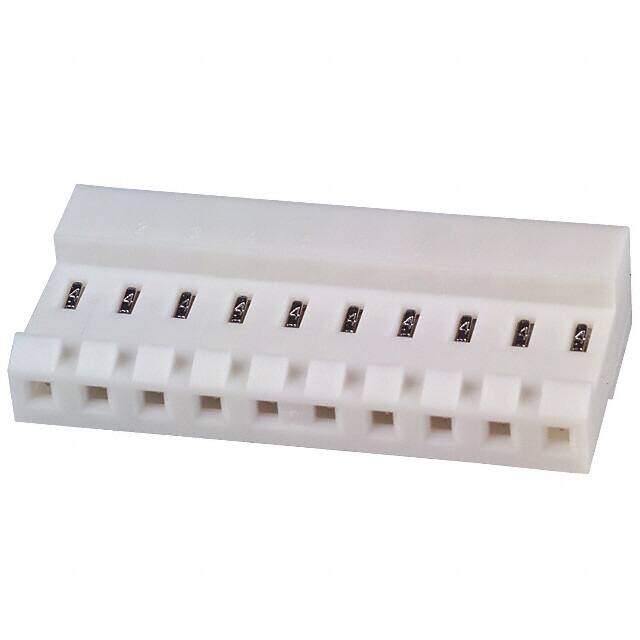

4-640429-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 10POS 24AWG MTA156
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.62832
≥100 USD $0.60016
≥500 USD $0.592064
≥1000 USD $0.517352
≥3000 USD $0.497939
Inventory: 315
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Plating Thickness 80μm
Contact Finish Thickness 80.0μin 2.03μm
Length 39.62mm
Height 9.02mm
Technical
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.413 mm
Number of Power Positions 10
Contact Current Rating 7A
Sealable No
Withdrawl Force-Min .8896 N
Insertion Force-Max 8.0064 N
Cable Termination IDC
Wire/Cable Gauge 24 AWG
Durability 25 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 2200VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
Wire Gauge 24 AWG
Contact Resistance 3mOhm
Rated Current (Signal) 7A
Operating Supply Voltage 600V
UL Flammability Code 94V-2
Contact Gender Female
Body Breadth 0.355 inch
Lead Pitch 3.96mm
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Contact Finish Tin
Reference Standard UL
Current Rating 7A
Depth 9.02mm
Orientation Right Angle
Total Number of Contacts 10
Pitch 0.156 3.96mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Voltage - Rated 600V
Number of Rows 1
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Receptacle
ECCN Code EAR99
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
JESD-609 Code e3
Series MTA-156
Published 2003
Packaging Bulk
Physical
Underplate Material Nickel
Body Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material COPPER ALLOY
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 14 Weeks
