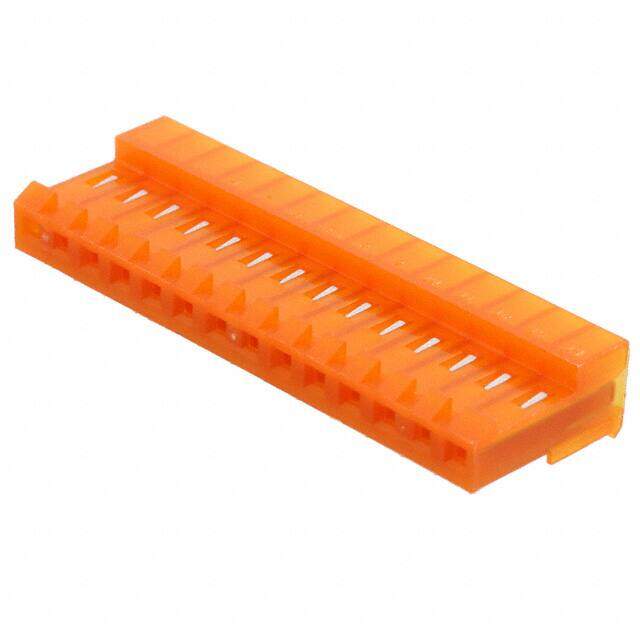

4-640426-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings REC 14P C/E 18AWG RAMP
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.4784
≥1 USD $1.4784
≥10 USD $1.34992
≥100 USD $1.203629
≥500 USD $0.964207
≥1000 USD $0.864468
≥3000 USD $0.822985
Inventory: 440
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material COPPER ALLOY
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2004
Series MTA-156
JESD-609 Code e3
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Receptacle
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Orange
Number of Rows 1
Fastening Type Locking Ramp
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 14
Orientation Right Angle
Depth 9.02mm
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Reliability COMMERCIAL
Approval Agency CSA
Lead Pitch 3.96mm
Body Breadth 0.355 inch
Contact Gender Female
UL Flammability Code 94V-2
Operating Supply Voltage 600V
Rated Current (Signal) 7A
Contact Resistance 3mOhm
Wire Gauge 18 AWG
ELV Compliant
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Contact Retention With
Wire Type Discrete
Insulation Diameter 2.413 mm
Number of Power Positions 14
Circuit Application Power
Contact Current Rating 7A
Sealable No
Withdrawl Force-Min .8896 N
Insertion Force-Max 8.0064 N
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Durability 25 Cycles
Dielectric Withstanding Voltage 2200VAC V
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Length 55.47mm
Height 9.02mm
Alternative Model
