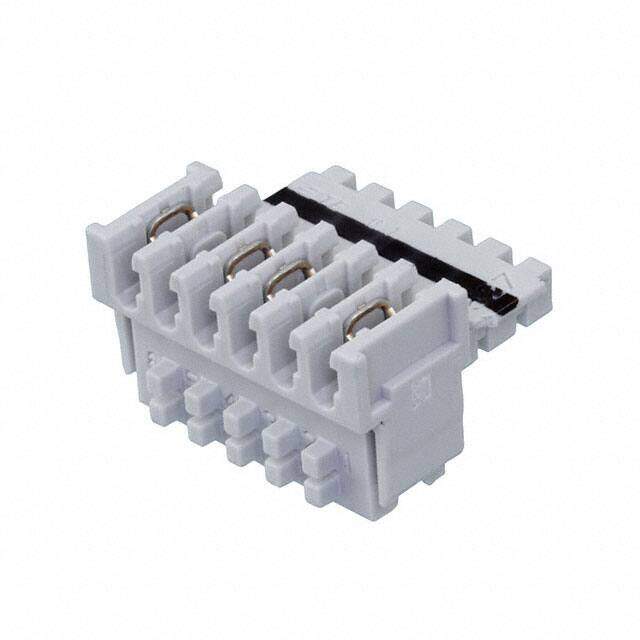

4-284866-6 image
Favorite
4-284866-6 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Conn IDC Connector RCP 6 POS 2.5mm IDT RA Cable Mount
PDF
/
Inventory: 7336
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)

Physical

Contact Material Bronze
Contact Plating Tin
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material PBT
PCB Mounting Orientation Right Angle

Technical

Packaging Tray
Published 2015
Series DuoPlug
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 6
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Female
Fastening Type Latch Lock
Contact Type Female Blade Socket
Pitch 0.079 2.00mm
Orientation Right Angle
Current Rating 2A
Contact Finish Tin
Number of Contacts 6
Housing Color Black
Operating Supply Voltage 250V
Wire Gauge 22-24 AWG
ELV Compliant
Cable Termination IDC
Contact Current Rating 2A
Circuit Application Signal
Insulation Diameter 1.6 mm
Wire/Cable Diameter 1.27 mm
Wire Type Discrete
Preloaded Yes

Dimensions

PCB Thickness 1.4986mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
