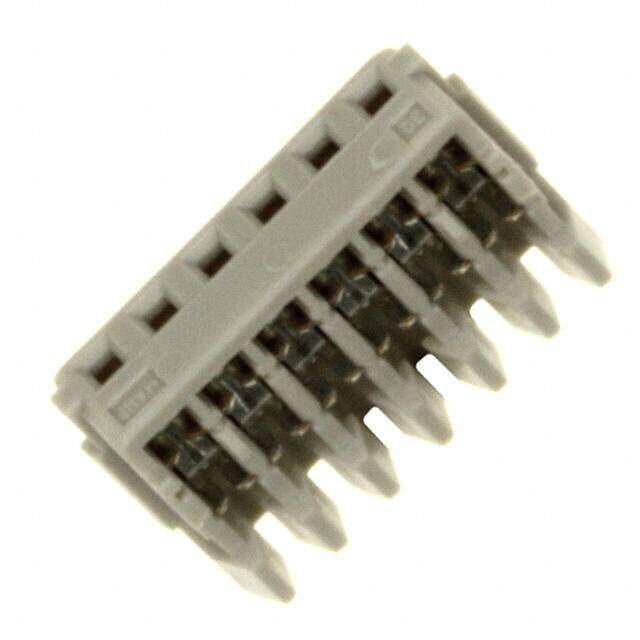

353293-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 6POS IDC 26-28AWG TIN
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.24552
≥100 USD $0.24464
≥500 USD $0.239712
≥1000 USD $0.204776
≥3000 USD $0.184342
Inventory: 107951
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 1999
Series Mini CT
Feature Closed End
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color Gray
Number of Rows 1
Voltage - Rated 50V
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.059 1.50mm
Total Number of Contacts 6
Orientation Straight
Depth 6mm
Current Rating 2A
Reference Standard UL
Contact Finish Tin
Reliability COMMERCIAL
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Natural
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Wire Gauge 26-28 AWG
ELV Compliant
Max Voltage Rating (AC) 50V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Durability 30 Cycles
Wire/Cable Gauge -26 AWG
Max Voltage Rating (DC) 5.05kV
Cable Termination IDC
Sealable No
Mating Retention With
Wire Type Discrete
Insulation Diameter-Min 0.032 inch
Dimensions
Length 10.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
