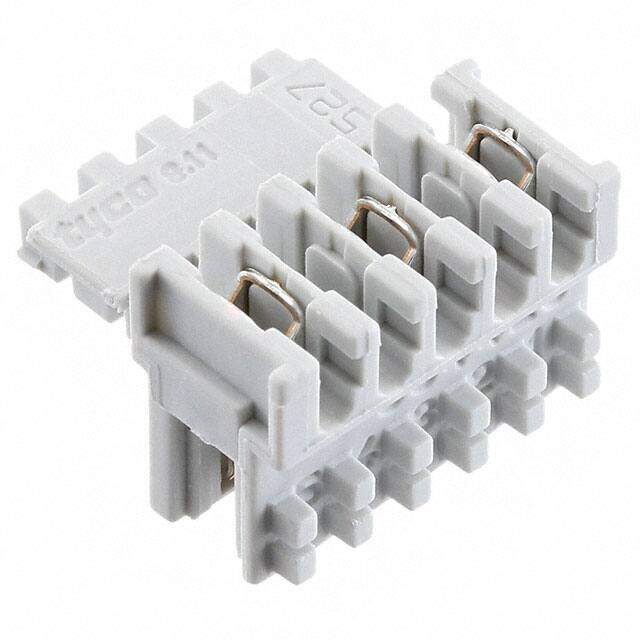

3-966480-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn IDC Connector RCP 5 POS 2.5mm IDT ST Cable Mount
PDF
/
Inventory: 1000
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 12μm
Length 14.9mm
Height 7.35mm
Technical
Preloaded Yes
Wire Type Discrete
Insulation Diameter 1.397 mm
Circuit Application Signal
Contact Current Rating 2A
Cable Termination IDC
Termination Type IDC
ELV Compliant
Housing Color Grey
UL Flammability Code 94V-0
Contact Finish Tin
Current Rating 2A
Depth 10.1mm
Orientation Right Angle
Total Number of Contacts 5
Pitch 0.098 2.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Number of Rows 1
Color Gray
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 5
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mates to PCB
Series DuoPlug
Published 2002
Packaging Bulk
Physical
PCB Mounting Orientation Right Angle
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 15 Weeks
