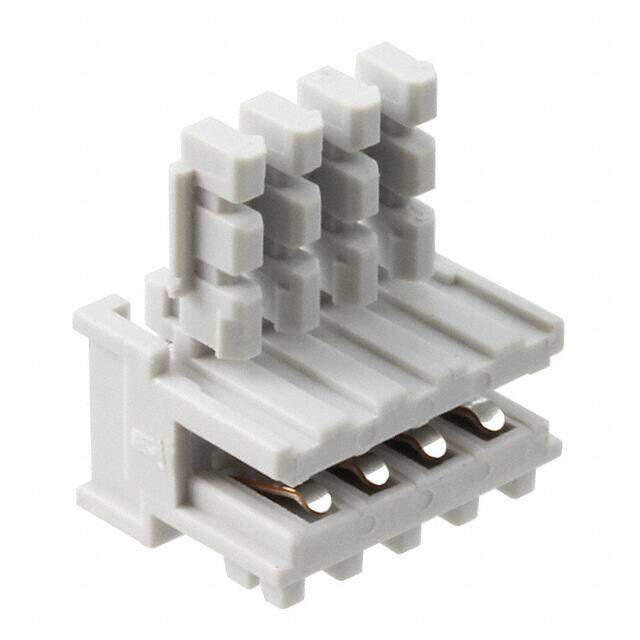

3-829868-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Conn Card Edge RCP 4 POS 2.5mm IDT ST Cable Mount
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.21736
≥100 USD $0.21648
≥500 USD $0.211904
≥1000 USD $0.181192
≥3000 USD $0.163038
Inventory: 87048
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

PCB Thickness 1.4986mm
Plating Thickness 12μm
Height 7.35mm

Technical

Preloaded Yes
Wire Type Discrete
Wire/Cable Diameter 1.397 mm
Insulation Diameter 1.2954 mm
Circuit Application Signal
Contact Current Rating 2A
Cable Termination IDC
Wire/Cable Gauge 22 AWG
ELV Compliant
Wire Gauge 22 AWG
Operating Supply Voltage 63V
Body Depth 0.398 inch
Housing Color Grey
Body Breadth 0.289 inch
Approval Agency UL
Reliability COMMERCIAL
Contact Finish Tin
Reference Standard UL
Current Rating 2A
Orientation Right Angle
Total Number of Contacts 4
Pitch 0.098 2.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Gender Female
Number of Rows 1
Color Gray
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 4
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mates to PCB
Series DuoPlug
Published 2004
Packaging Bulk

Physical

PCB Mounting Orientation Right Angle
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 10 Weeks
