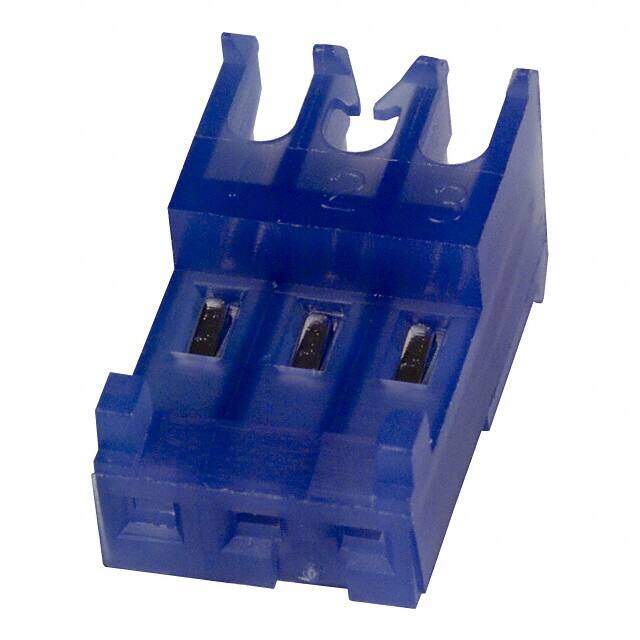

3-644564-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 3POS 26AWG MTA100
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.2024
≥1 USD $0.2024
≥10 USD $0.18568
≥100 USD $0.185152
≥500 USD $0.181104
≥1000 USD $0.15488
≥3000 USD $0.139392
Inventory: 1772
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Contact Shape Square
Housing Material Nylon
Body Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-100
Feature Feed Through
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Blue
Number of Rows 1
Gender Receptacle
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 7.75mm
Current Rating 5A
Contact Finish Tin
Voltage - Rated AC 250V
Approval Agency CSA
Shrouding No
Lead Pitch 2.54mm
Number of Contacts 3
Contact Gender Female
Housing Color Blue, White
Operating Supply Voltage 250V
Contact Resistance 6mOhm
Wire Gauge 26 AWG
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Wire/Cable Gauge 26 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment With
Dimensions
Height 7.75mm
Length 7.62mm
Width 7.747mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
