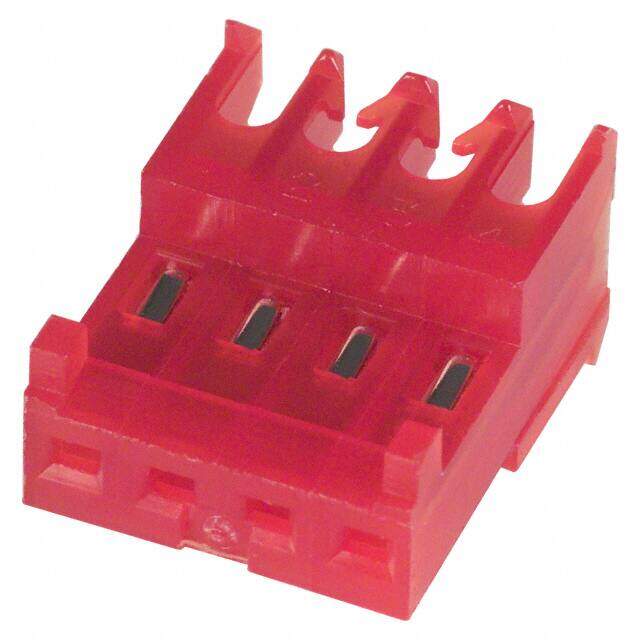

3-644540-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 4POS 22AWG MTA100
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.28688
≥100 USD $0.285472
≥500 USD $0.279488
≥1000 USD $0.238832
≥3000 USD $0.214966
Inventory: 2295
Minimum: 1
-
+
Technical Details
Technical
Pitch 0.100 2.54mm
Total Number of Contacts 4
Orientation Right Angle
Depth 7.75mm
Current Rating 5A
Contact Finish Tin
Voltage - Rated AC 250V
Reliability COMMERCIAL
Approval Agency CSA
Lead Pitch 2.54mm
Body Breadth 0.305 inch
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 250V
Rated Current (Signal) 5A
Contact Resistance 6mOhm
Wire Gauge 22 AWG
ELV Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
Wire/Cable Type Discrete
Durability 25 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Insertion Force-Max 8.896 N
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Color Red
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Receptacle
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
JESD-609 Code e3
Series MTA-100
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Body Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material COPPER ALLOY
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 18 Weeks
Dimensions
Height 7.75mm
Length 10.16mm
Width 7.747mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
