3-644471-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

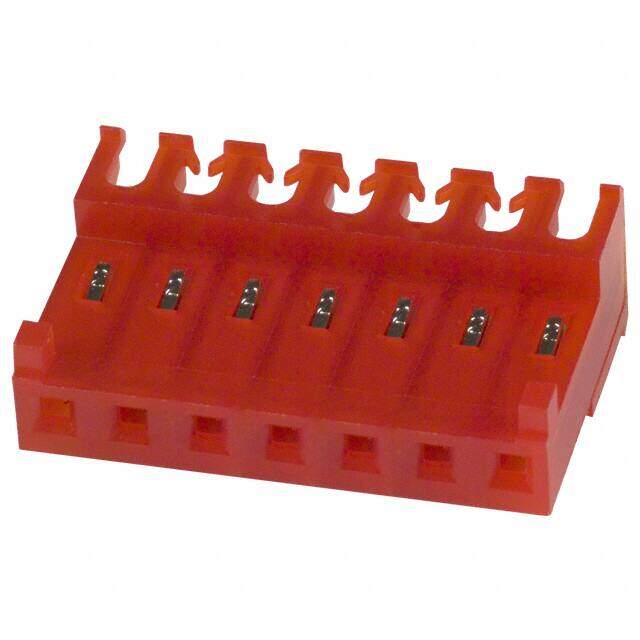

CONN RECEPT 7POS 22AWG MTA156
PDF
/
Inventory: 8456
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-156
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 7
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Voltage - Rated 600V
Contact Type Female Socket
Pitch 0.156 3.96mm
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Shrouding No
Lead Pitch 3.96mm
Number of Contacts 7
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 600V
Wire Gauge 22 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Signal
Mating Retention With
Insulation Diameter 2.41 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment With
Dimensions
Height 9.779mm
Length 27.7368mm
Width 9.78mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
