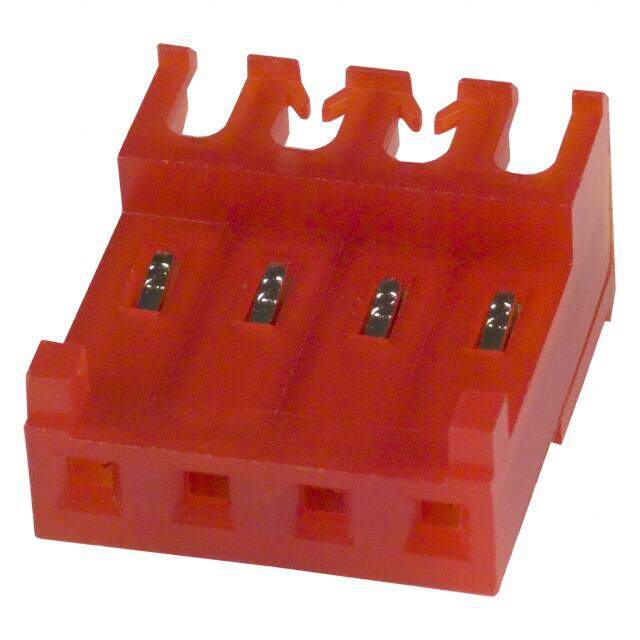

3-644471-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 4POS 22AWG MTA156
PDF
/
Inventory: 8992
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-156
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Mating Alignment With
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.41 mm
Mating Retention With
Circuit Application Signal
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
ELV Compliant
Wire Gauge 22 AWG
Operating Supply Voltage 600V
Housing Color Red, White
Contact Gender Female
Number of Contacts 4
Lead Pitch 3.96mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Pitch 0.156 3.96mm
Contact Type Female Socket
Voltage - Rated 600V
Number of Rows 1
Color Red
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 9.78mm
Length 15.8496mm
Height 9.779mm
