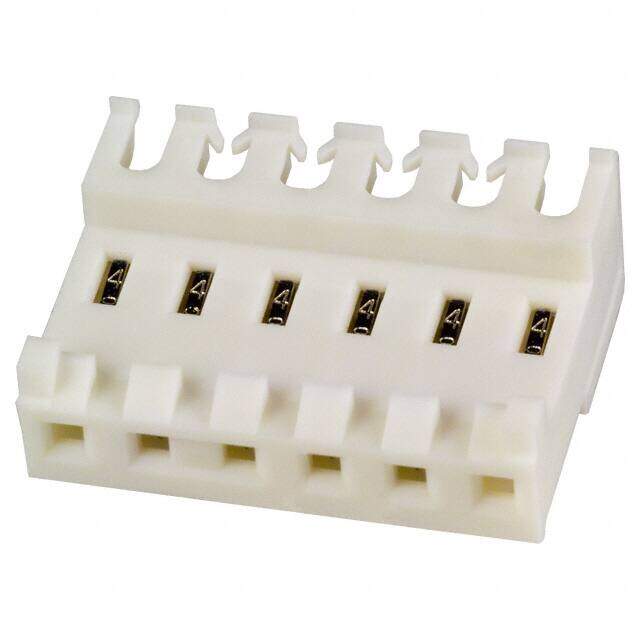

3-644468-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 6POS 24AWG MTA156
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.026688
≥1 USD $1.026688
≥200 USD $0.409625
≥500 USD $0.396496
≥1000 USD $0.389931
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 9.017mm
Length 23.77mm
Height 9.779mm
Technical
Mating Alignment With
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.41 mm
Mating Retention With
Circuit Application Signal
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 24 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 600V
ELV Compliant
Wire Gauge 24 AWG
Contact Resistance 3mOhm
Operating Supply Voltage 600V
Housing Color White
Contact Gender Female
Number of Contacts 6
Lead Pitch 3.96mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Depth 9.78mm
Orientation Right Angle
Pitch 0.156 3.96mm
Contact Type Female Socket
Fastening Type Locking Ramp
Voltage - Rated 600V
Gender Receptacle
Number of Rows 1
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 6
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series MTA-156
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 17 Weeks
