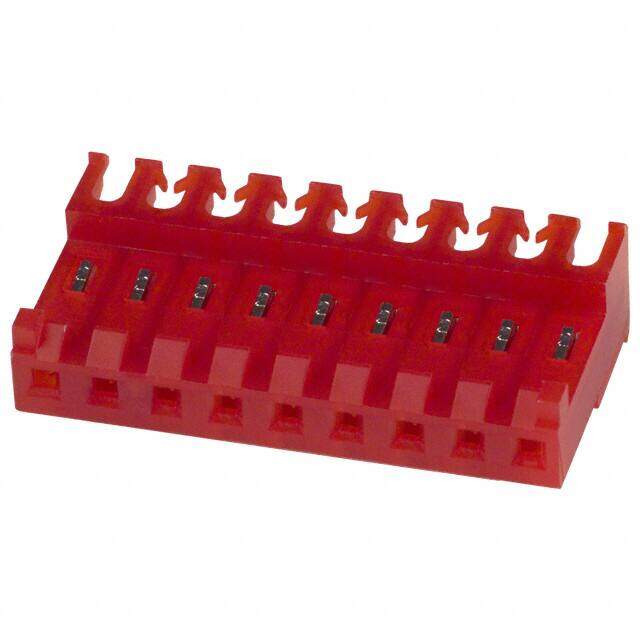

3-644467-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 9POS 22AWG MTA156
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.920571
≥1 USD $0.920571
≥10 USD $0.868461
≥100 USD $0.8193
≥500 USD $0.772932
≥1000 USD $0.729179
Inventory: 9529
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2007
Series MTA-156
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 9
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Gender Receptacle
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.156 3.96mm
Orientation Right Angle
Depth 9.78mm
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Shrouding No
Lead Pitch 3.96mm
Number of Contacts 9
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 600V
Contact Resistance 3mOhm
Wire Gauge 22 AWG
ELV Compliant
Max Voltage Rating (AC) 600V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Signal
Mating Retention With
Insulation Diameter 2.41 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment With
Dimensions
Height 9.779mm
Length 35.66mm
Width 9.017mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
