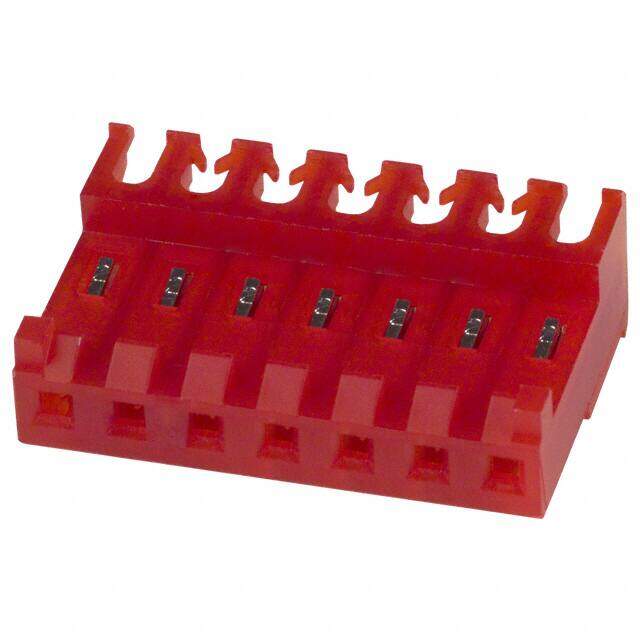

3-644467-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 7POS 22AWG MTA156
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.070014
≥1 USD $1.070014
≥200 USD $0.428005
≥500 USD $0.413564
≥1000 USD $0.405686
Inventory: 7475
Minimum: 1
-
+
Technical Details
Technical
Connector Type Receptacle
Number of Positions 7
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Gender Receptacle
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.156 3.96mm
Orientation Right Angle
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Shrouding No
Lead Pitch 3.96mm
Number of Contacts 7
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 600V
Contact Resistance 3mOhm
Wire Gauge 22 AWG
ELV Compliant
Max Voltage Rating (AC) 600V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Signal
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series MTA-156
Published 2008
Packaging Bulk
Mating Retention With
Insulation Diameter 2.41 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment With
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 17 Weeks
Dimensions
Height 9.779mm
Length 27.7368mm
Width 9.017mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
