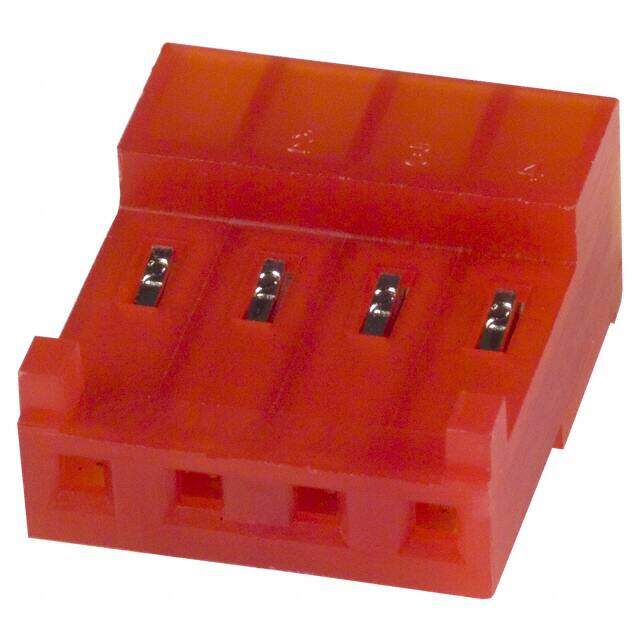

3-644463-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 4POS 22AWG MTA156
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.48752
≥100 USD $0.367277
≥500 USD $0.304022
≥1000 USD $0.269333
≥3000 USD $0.252525
Inventory: 1739
Minimum: 1
-
+
Technical Details
Technical
Durability 25 Cycles
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Withdrawl Force-Min .8896 N
Sealable No
Contact Current Rating 7A
Number of Power Positions 4
Insulation Diameter 2.413 mm
Number of Signal Positions 0
Wire Type Discrete or Ribbon Cable
Contact Retention With
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
ELV Compliant
Wire Gauge 22 AWG
Contact Resistance 3mOhm
Rated Current (Signal) 7A
Operating Supply Voltage 600V
Contact Gender Female
Lead Pitch 3.96mm
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Depth 9.02mm
Orientation Right Angle
Total Number of Contacts 4
Pitch 0.156 3.96mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Number of Rows 1
Color Red
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Receptacle
ECCN Code EAR99
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End, Polarizing Key
JESD-609 Code e3
Series MTA-156
Published 2008
Packaging Bulk
Dimensions
Height 9.02mm
Length 15.8496mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material COPPER ALLOY
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 16 Weeks
