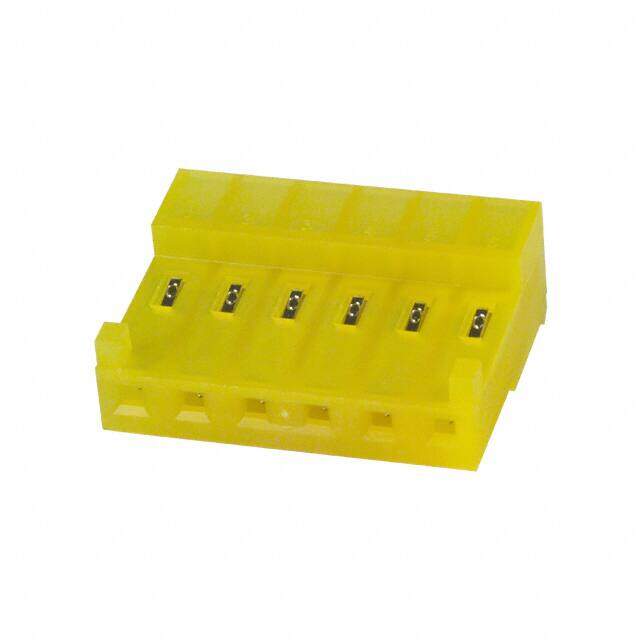

3-644462-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 6POS 20AWG MTA156
PDF
/
Inventory: 6244
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 9.02mm
Length 23.77mm
Height 9.02mm
Technical
Mating Alignment With
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.41 mm
Mating Retention Without
Circuit Application Signal
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 20 AWG
Wire/Cable Type Discrete
ELV Compliant
Wire Gauge 20 AWG
Operating Supply Voltage 600V
Housing Color Yellow, White
Contact Gender Female
Number of Contacts 6
Lead Pitch 3.96mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Pitch 0.156 3.96mm
Contact Type Female Socket
Voltage - Rated 600V
Number of Rows 1
Color Yellow
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 6
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End, Polarizing Key
Series MTA-156
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 17 Weeks
