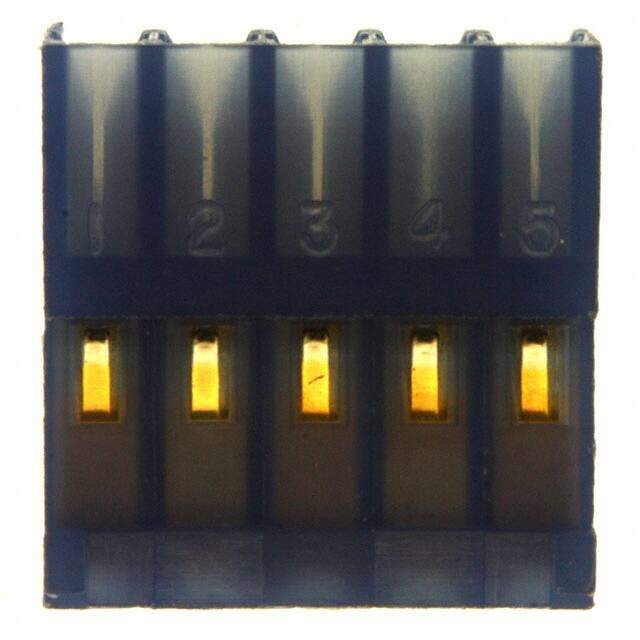

3-644043-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 5POS IDC 26AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.9184
≥1 USD $1.9184
≥10 USD $1.70808
≥100 USD $1.396296
≥500 USD $1.248861
≥1000 USD $1.101426
Inventory: 2466
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Width 6.99mm
Length 12.7mm
Height 6.99mm
Technical
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.52 mm
Mating Retention With
Circuit Application Signal
Contact Current Rating 5A
Sealable No
Insertion Force-Max 8.896 N
Cable Termination IDC
Wire/Cable Gauge 26 AWG
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Wire Gauge 26 AWG
Contact Resistance 6mOhm
Rated Current (Signal) 5A
Operating Supply Voltage 250V
Housing Color Blue, White
UL Flammability Code 94V-2
Contact Gender Female
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Contact Finish Gold
Current Rating 5A
Depth 6.99mm
Orientation Right Angle
Total Number of Contacts 5
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Color Blue
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 5
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Closed End
JESD-609 Code e3
Series MTA-100
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material PHOSPHOR BRONZE
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 18 Weeks
