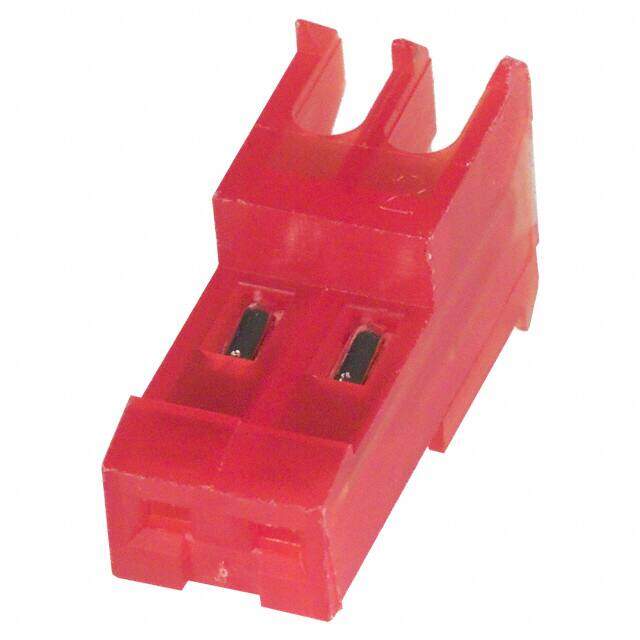

3-641653-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 2POS 22AWG MTA100
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.19096
≥100 USD $0.190432
≥500 USD $0.187968
≥1000 USD $0.173624
≥3000 USD $0.142736
Inventory: 6305
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 7.747mm
Length 5.08mm
Height 7.75mm
Technical
Mating Alignment Without
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.52 mm
Mating Retention With
Circuit Application Signal
Contact Current Rating 5A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 250V
ELV Compliant
Wire Gauge 22 AWG
Contact Resistance 6mOhm
Operating Supply Voltage 250V
Housing Color Red, White
Contact Gender Female
Number of Contacts 2
Lead Pitch 2.54mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 250V
Contact Finish Tin
Current Rating 5A
Depth 7.75mm
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Female Socket
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Receptacle
Number of Rows 1
Color Red
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series MTA-100
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 18 Weeks
