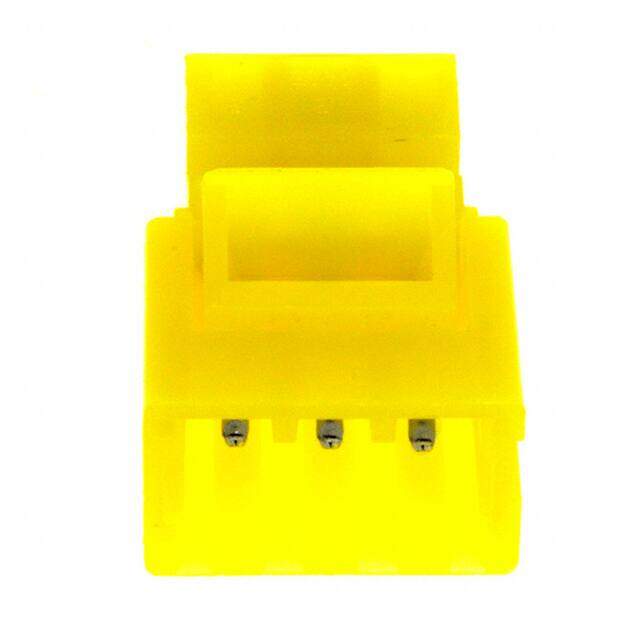

3-641436-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 3POS IDC 20AWG .156
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.0912
≥1 USD $1.0912
≥10 USD $1.02256
≥100 USD $0.984544
≥500 USD $0.975216
≥1000 USD $0.88
≥3000 USD $0.851453
Inventory: 1914
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-156
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Plug
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Yellow
Number of Rows 1
Gender Male
Voltage - Rated 600V
Contact Type Male Pin
Pitch 0.156 3.96mm
Orientation Right Angle
Depth 12.37mm
Current Rating 7A
Contact Finish Tin
Approval Agency CSA
Shrouding Yes
Number of Contacts 3
Contact Gender Male
Housing Color Yellow
Operating Supply Voltage 600V
Contact Resistance 3mOhm
Wire Gauge 20 AWG
Max Voltage Rating (AC) 600V
Plating Tin
Wire/Cable Type Discrete
Wire/Cable Gauge 20 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Power
Number of Power Positions 3
Insulation Diameter 2.413 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Dimensions
Height 12.37mm
Length 15.85mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 80μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
