3-641222-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

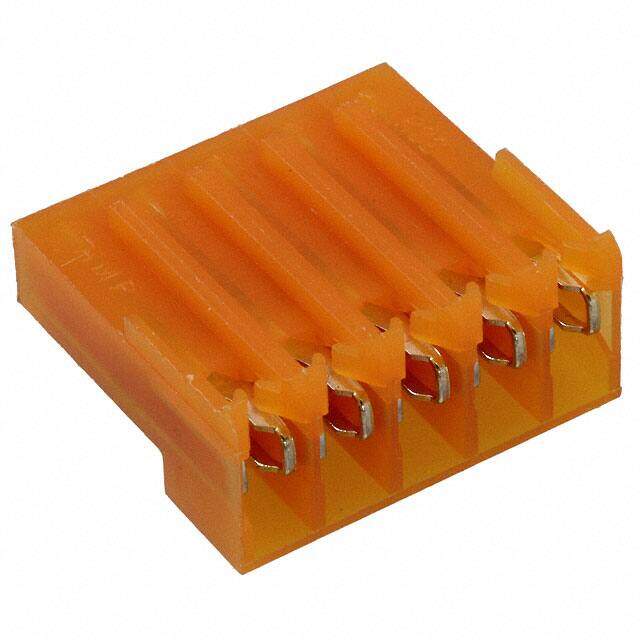

Headers & Wire Housings 05P MTA156 CONN ASSY 18AWG LF
PDF
/
Inventory: 3553
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 1.77μm
Contact Finish Thickness 30.0μin 0.76μm
Width 9.017mm
Length 19.812mm
Height 9.02mm
Technical
Mating Alignment Without
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.41 mm
Mating Retention Without
Circuit Application Power
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Wire/Cable Type Discrete
ELV Compliant
Wire Gauge 18 AWG
Operating Supply Voltage 600V
Housing Color Orange, White
Contact Gender Female
Number of Contacts 5
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Gold
Current Rating 7A
Pitch 0.156 3.96mm
Contact Type Female Socket
Voltage - Rated 600V
Gender Receptacle
Number of Rows 1
Color Orange
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 5
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series MTA-156
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin, Gold
