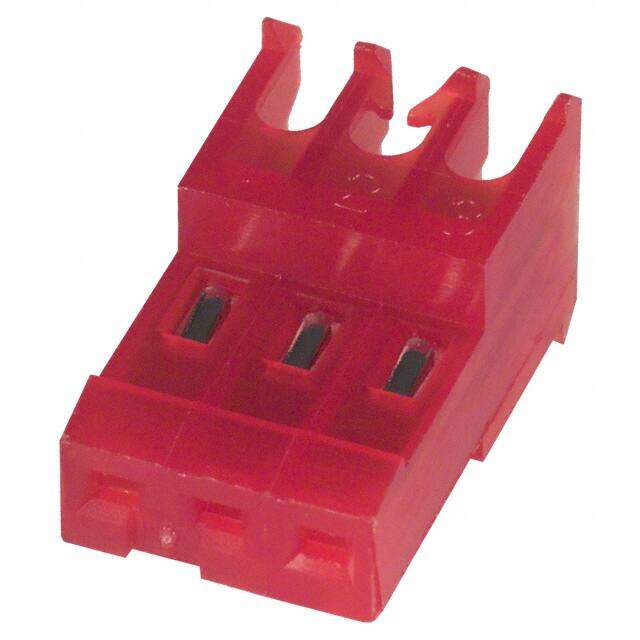

3-640620-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 3POS 22AWG MTA100
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.2904
≥1 USD $0.2904
≥10 USD $0.25344
≥100 USD $0.178974
≥500 USD $0.166338
≥1000 USD $0.147391
≥3000 USD $0.130548
Inventory: 37111
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Gender Receptacle
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 7.75mm
Current Rating 5A
Contact Finish Tin
Voltage - Rated AC 250V
Approval Agency CSA
Shrouding No
Lead Pitch 2.54mm
Number of Contacts 3
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 250V
Contact Resistance 6mOhm
Wire Gauge 22 AWG
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Part Status Active
Feature Feed Through
Series MTA-100
Published 2008
Packaging Bulk
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment Without
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 18 Weeks
Dimensions
Height 7.75mm
Length 7.62mm
Width 7.747mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
